hourglass at sunset: new block tutorial

Hourglass Sunset by Leland Ave Studios/Kim SoperThanks for joining me on the 2016 Paintbrush Studio New Block Blog Hop! This hop’s palette (from their new line of solids Painter’s Palette) was inspired by an ocean sunset, and this block takes advantage of that theme using an easy-peasy “hourglass” foundation — with a twist! Let’s get started!

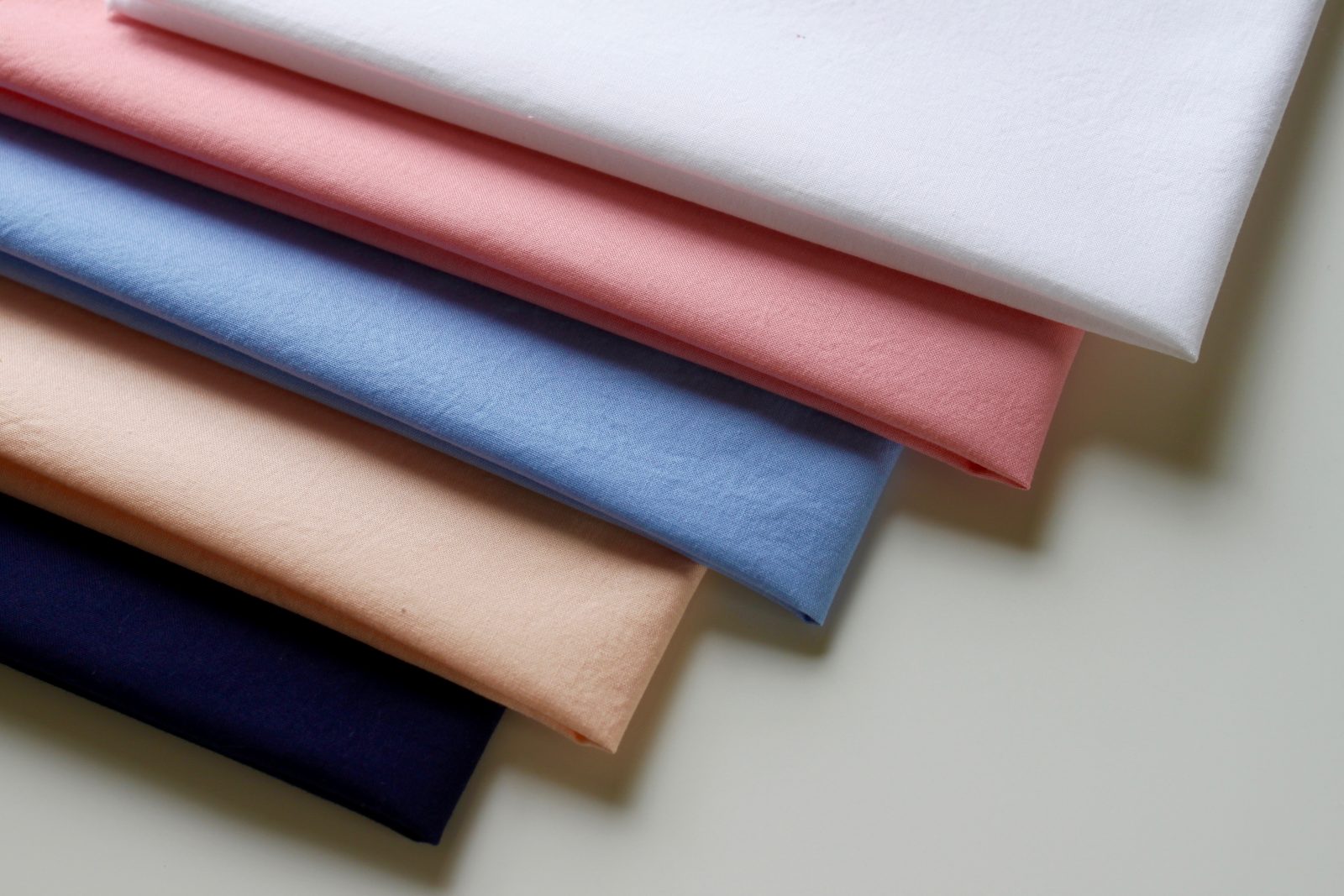

Supplies:

Hourglass Sunset by Leland Ave Studios/Kim Soper(1) 7 1/4″ square in Coral

(1) 7 1/4″ square in Daydream

(1) 7 1/4″ square in Peach

(1) 7 1/4″ square in Midnight

(1) 5 1/2″ square in White

You will also need a rotary cutter, self healing mat, ruler and a pen for marking.  All seam allowances are 1/4″. Unfinished block will measure 12 1/2″ square.

The How-To:

Step 1. Make Half-Square Triangles.

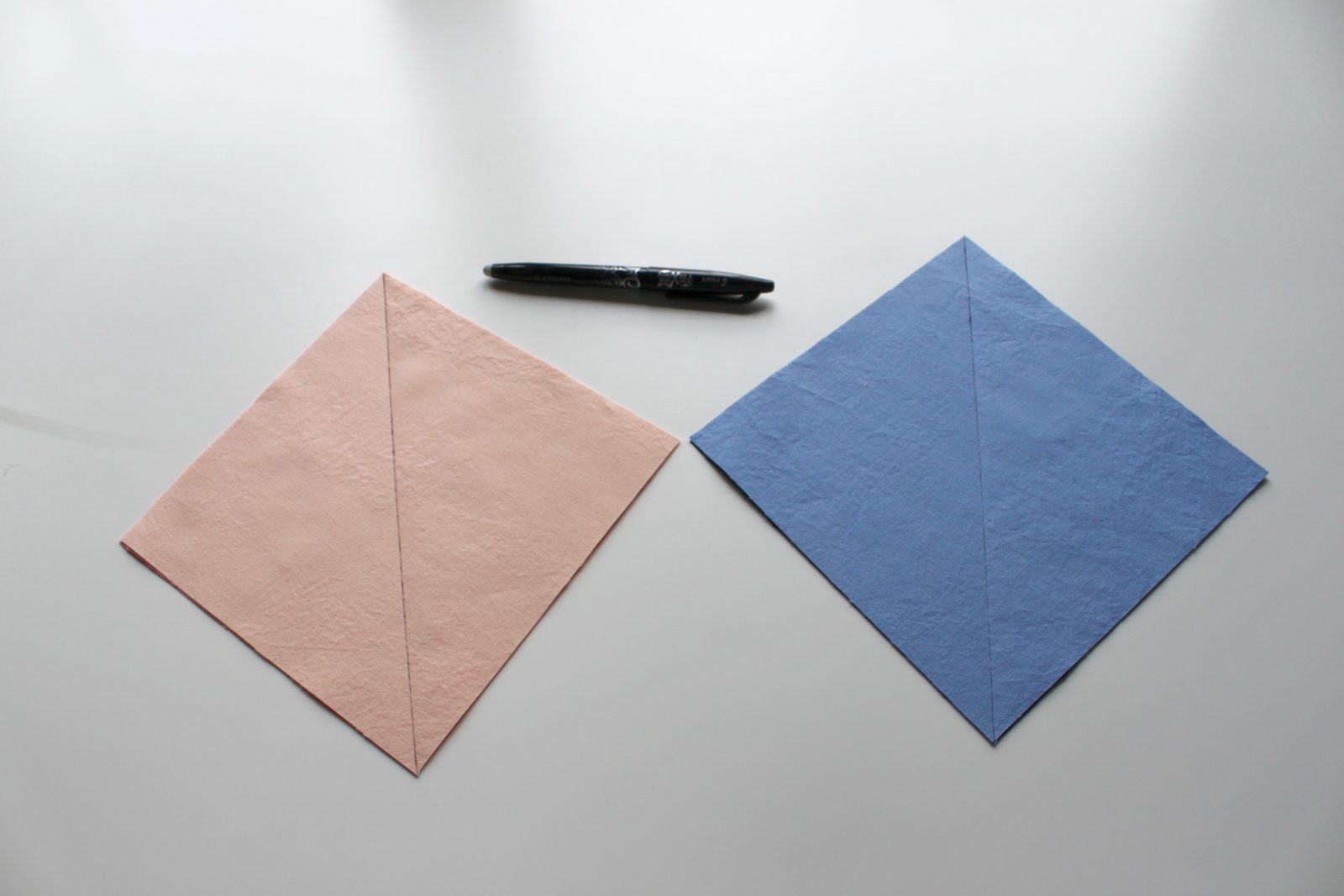

Hourglass Sunset by Leland Ave Studios/Kim SoperPlace the Peach square directly on top of the Coral square (rights sides together). Similarly, place the Daydream square directly on top of the Midnight square. Using your pen, draw a diagonal line from corner to corner on the back side of the Peach and Daydream squares.

Hourglass Sunset by Leland Ave Studios/Kim Soper

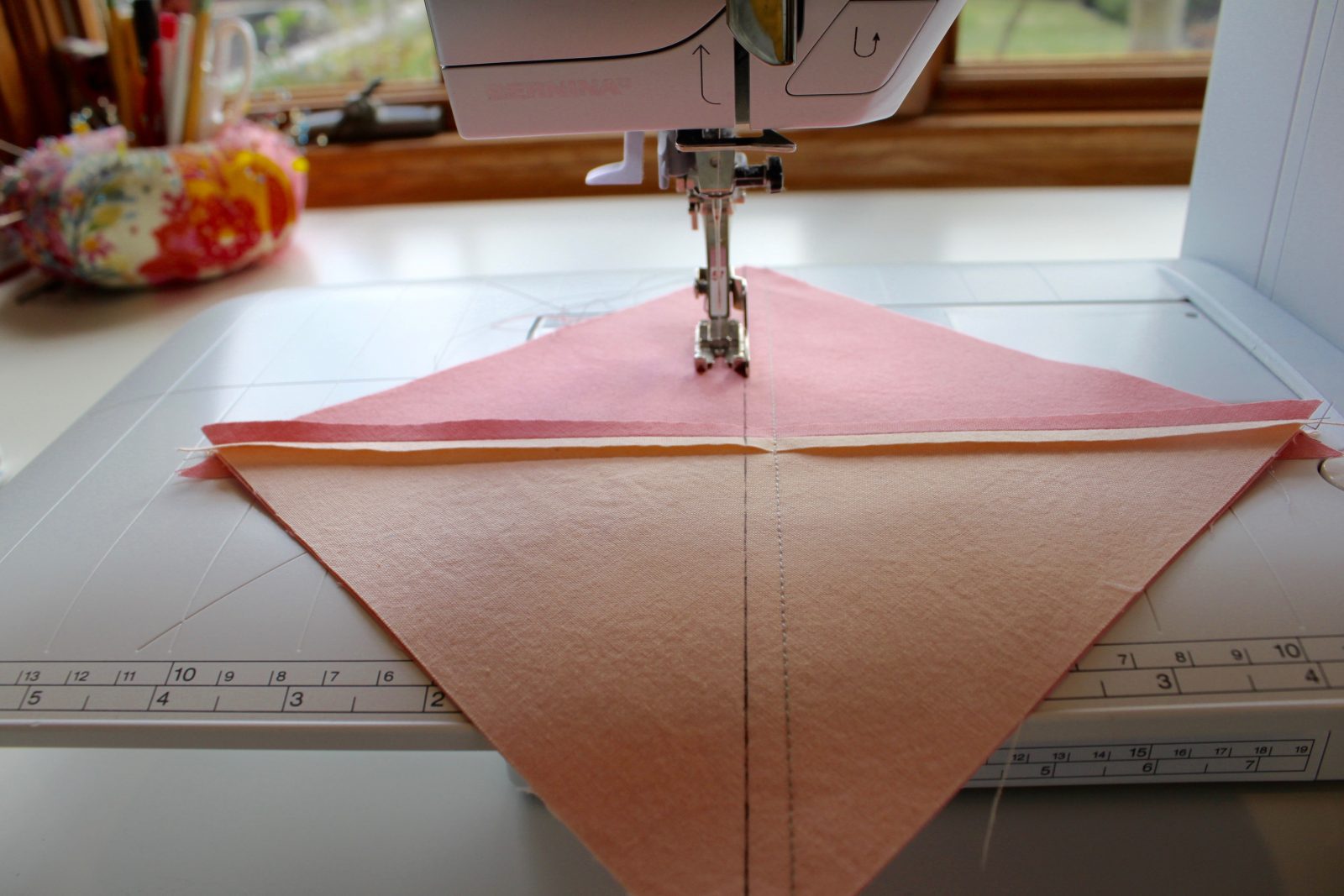

Sew a seam 1/4″ on either side of the marked diagonal line. Repeat for both squares.

Hourglass Sunset by Leland Ave Studios/Kim Soper

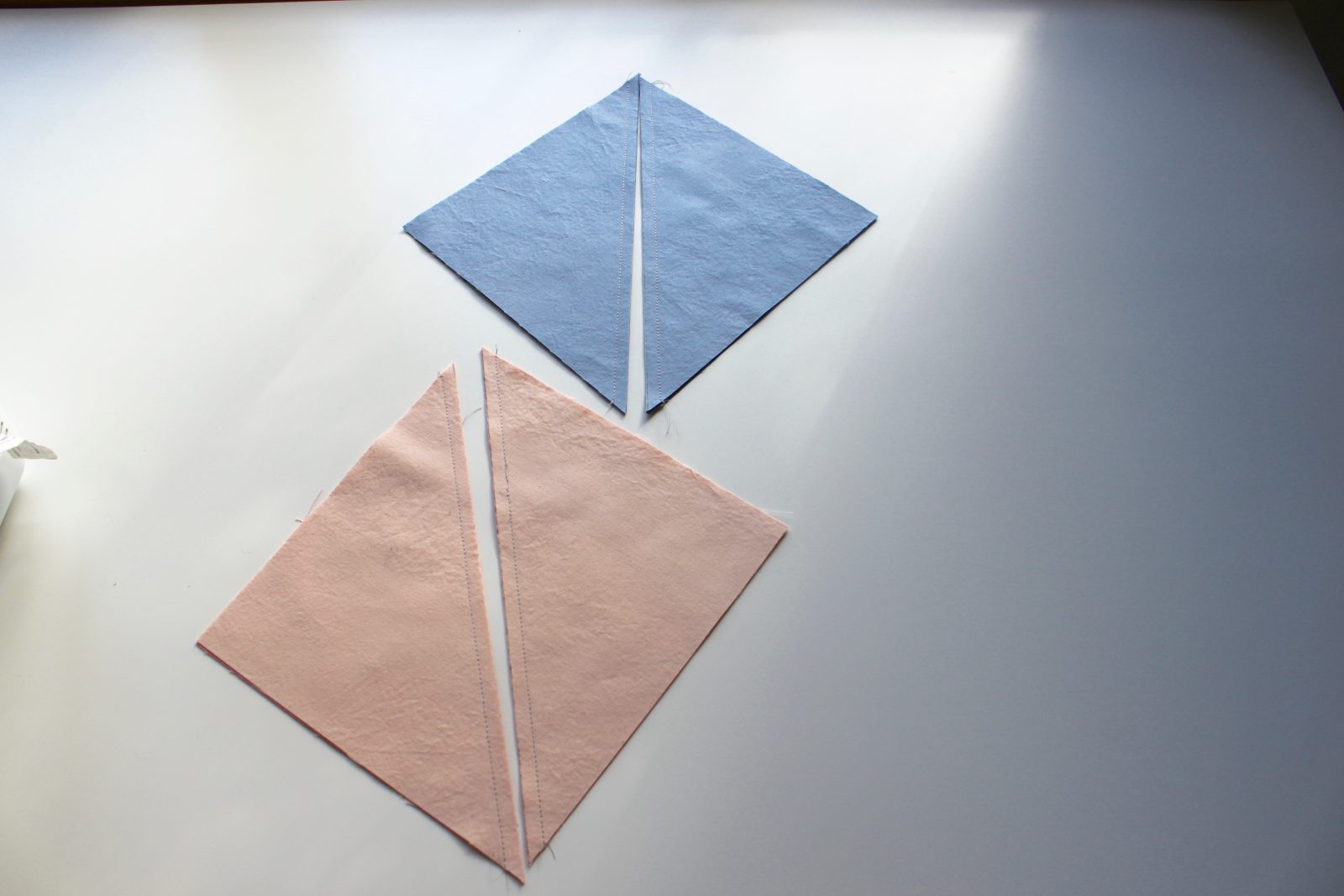

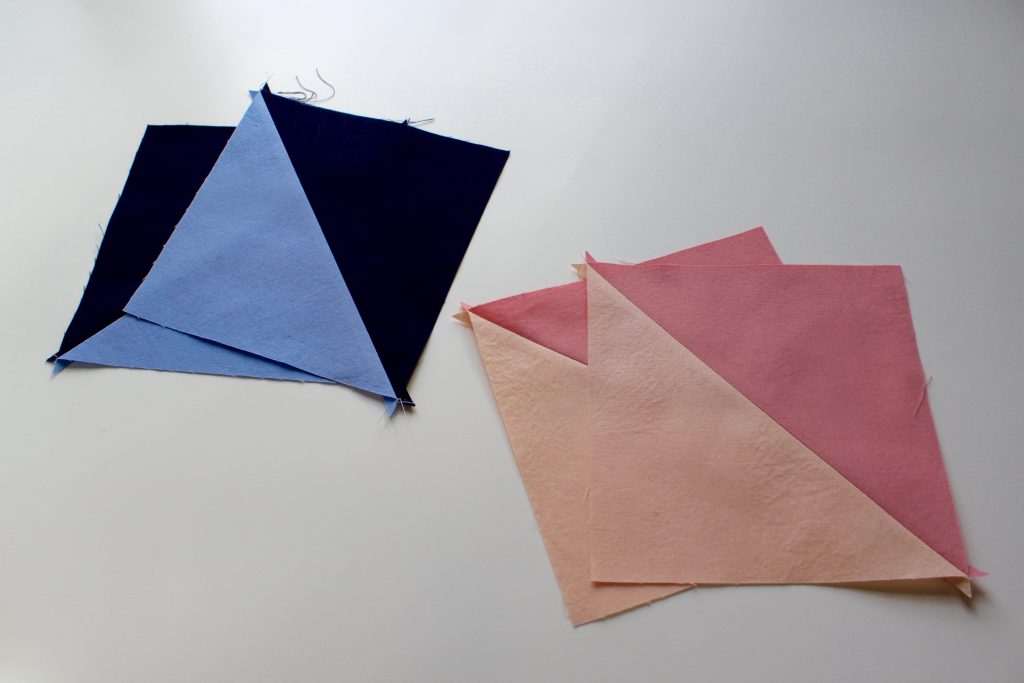

Cut each of the sewn pairs on the marked line.

Hourglass Sunset by Leland Ave Studios/Kim Soper

Press the seams open.



Step 2. Make the Hourglasses.

Hourglass Sunset by Leland Ave Studios/Kim SoperOn the back of one of the half-square triangles (in each color), draw a diagonal line between the corners that are perpendicular to the seam.

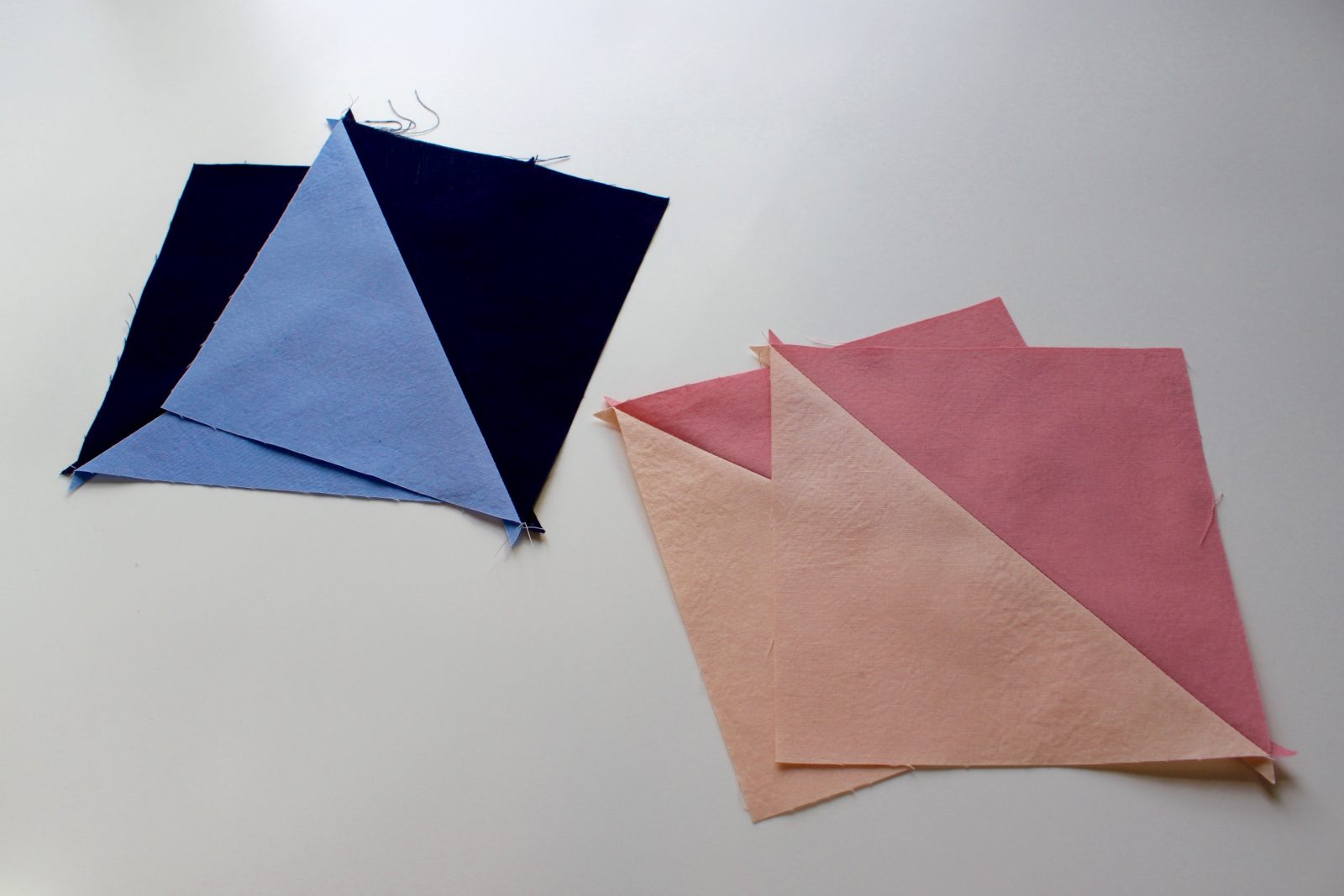

Place the blocks right sides together making sure to match opposing colors on top of each other. (i.e., Peach will be on top of Coral/Coral on top of Peach. Midnight on top of Daydream/Daydream on top of Midnight).

Hourglass Sunset by Leland Ave Studios/Kim SoperSew a seam 1/4″ on either side of the marked diagonal line.

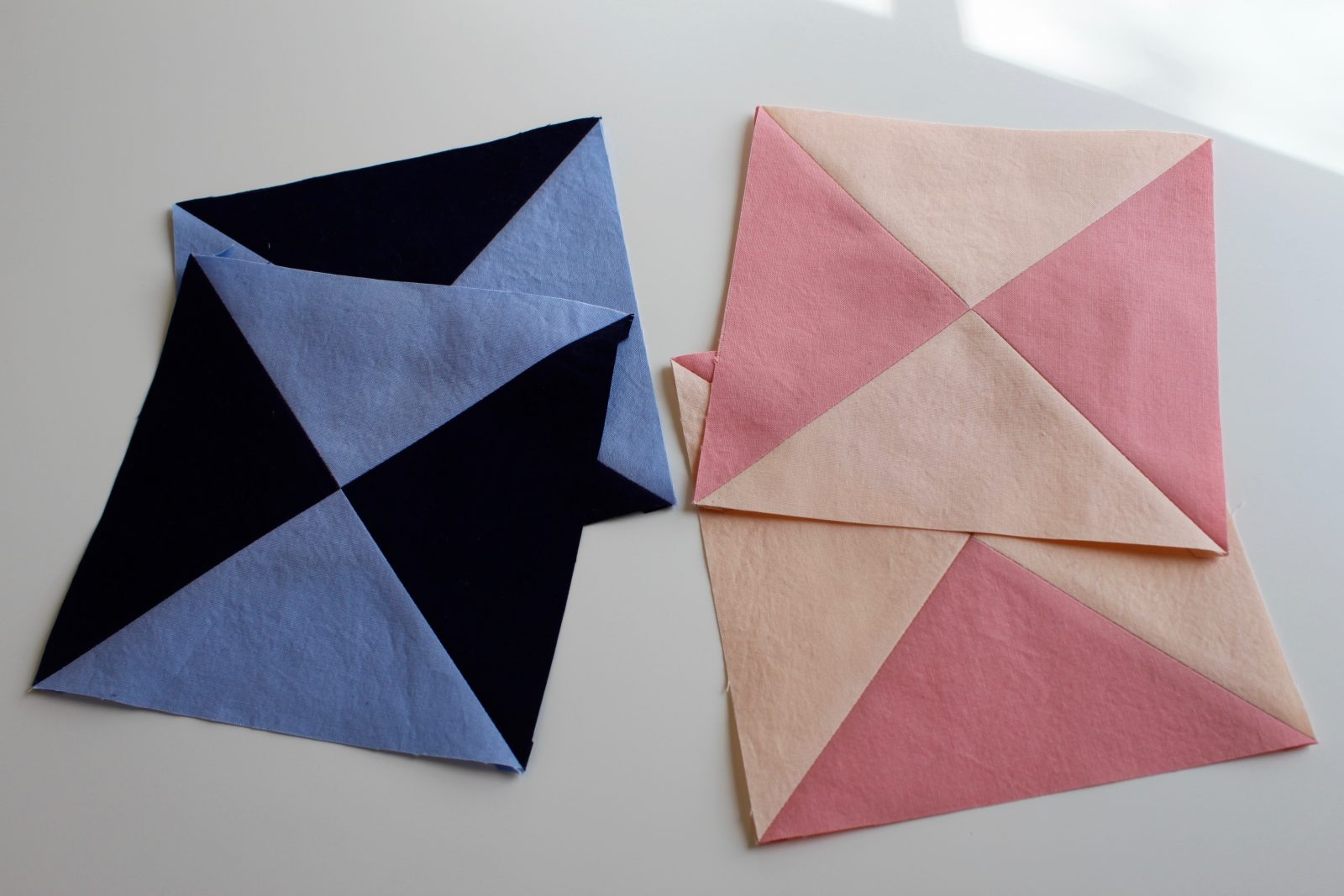

Hourglass Sunset by Leland Ave Studios/Kim SoperCut on the diagonal line.

Press seams open and square up each block to 6 1/2″.



Step 3: Mark and Slice the hourglasses.

Hourglass Sunset by Leland Ave Studios/Kim SoperPlace your hourglass blocks on the cutting mat in an arrangement that is pleasing to you. In my case, the Midnight triangles are on the top and bottom, and the Coral/Peach blocks are perpendicular to one another.

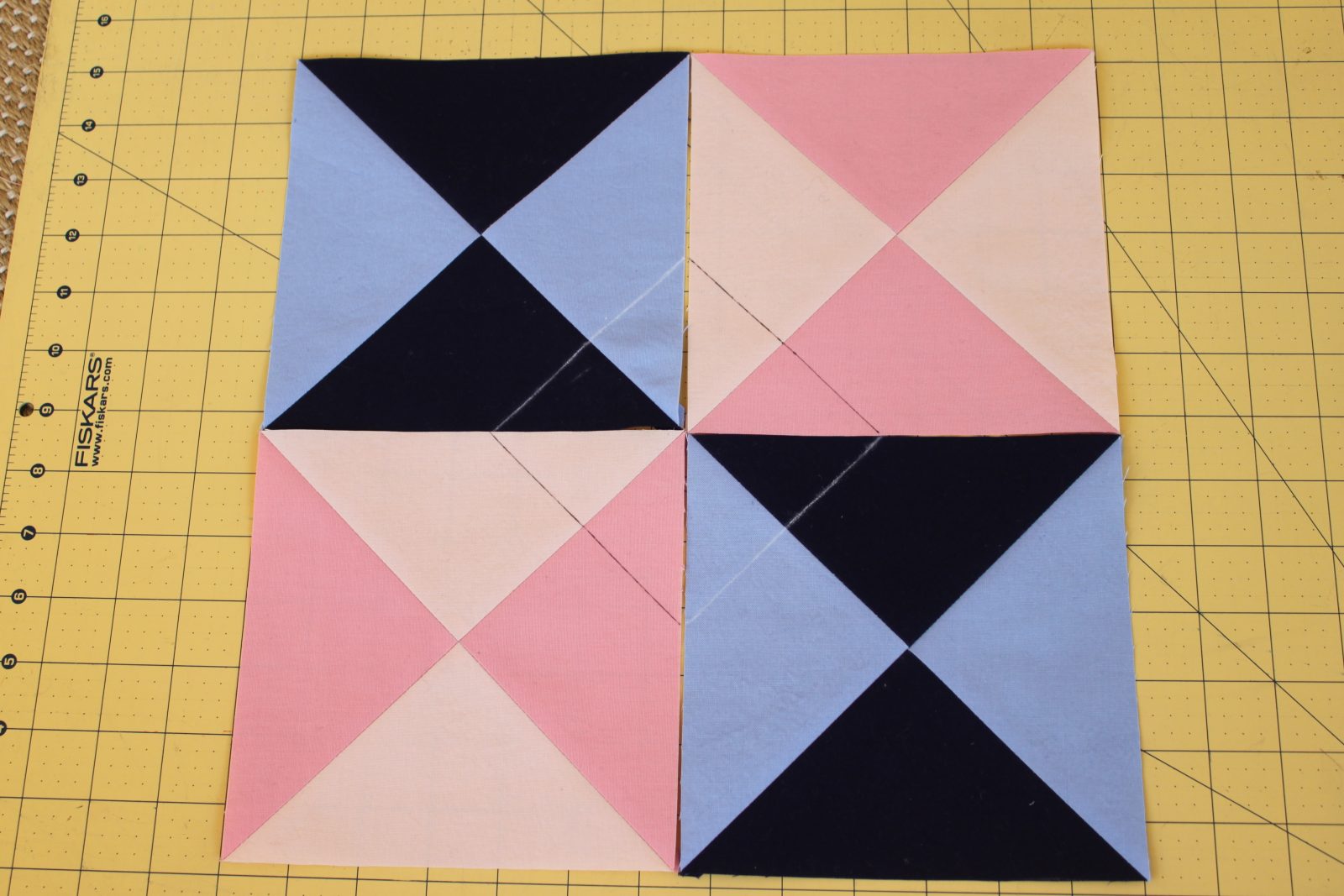

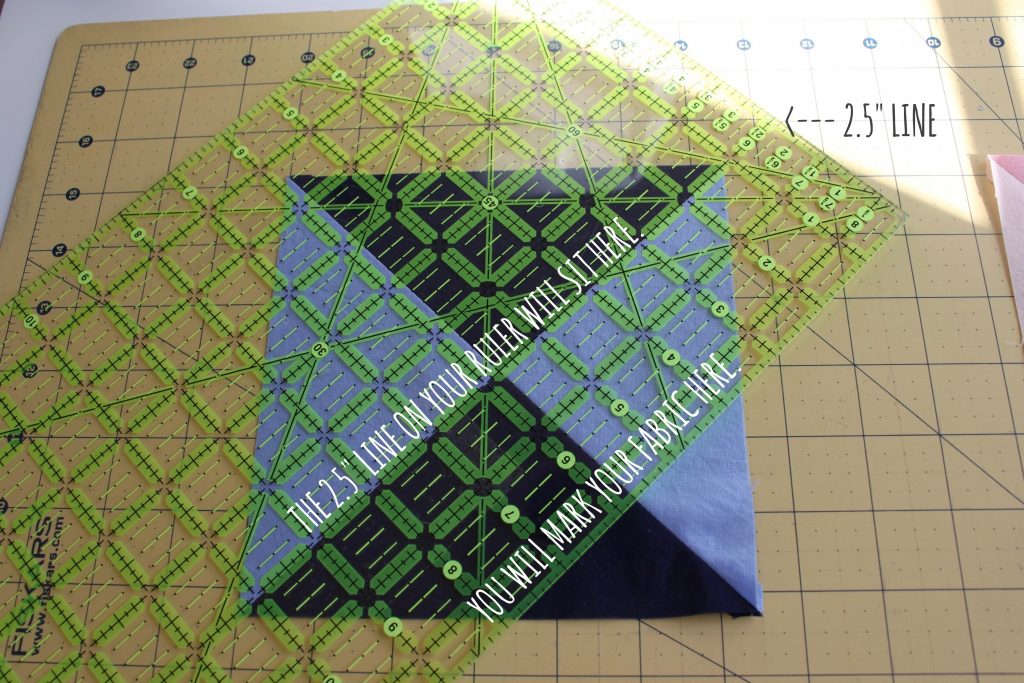

Hourglass Sunset by Leland Ave Studios/Kim SoperFind the 2 1/2″ line on your ruler, and place it on the center seam line of each hourglass block. Mark the diagonal line. Make sure before cutting that all of your diagonal lines meet to form a diamond.

Hourglass Sunset by Leland Ave Studios/Kim SoperCut on the marked lines.



Step 4: Cut and attach the white triangles.

Hourglass Sunset by Leland Ave Studios/Kim SoperMark your White square across one diagonal from corner to corner, and then do the same across the other diagonal. Slice the White square on the marked lines so that you have 4 triangles.

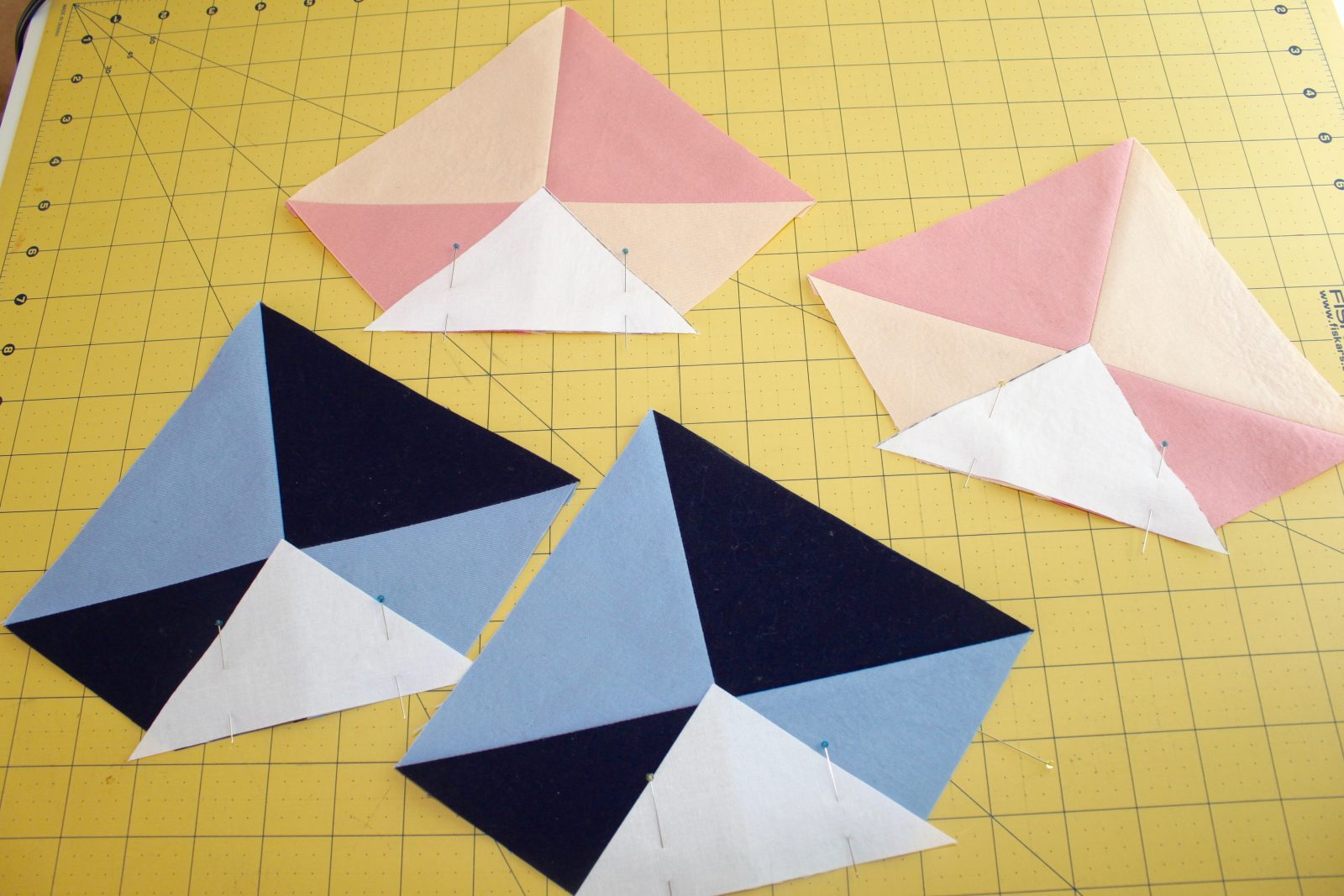

Hourglass Sunset by Leland Ave Studios/Kim SoperAttach a triangle to each of the hourglass blocks on the cut edge.

Hourglass Sunset by Leland Ave Studios/Kim Soper

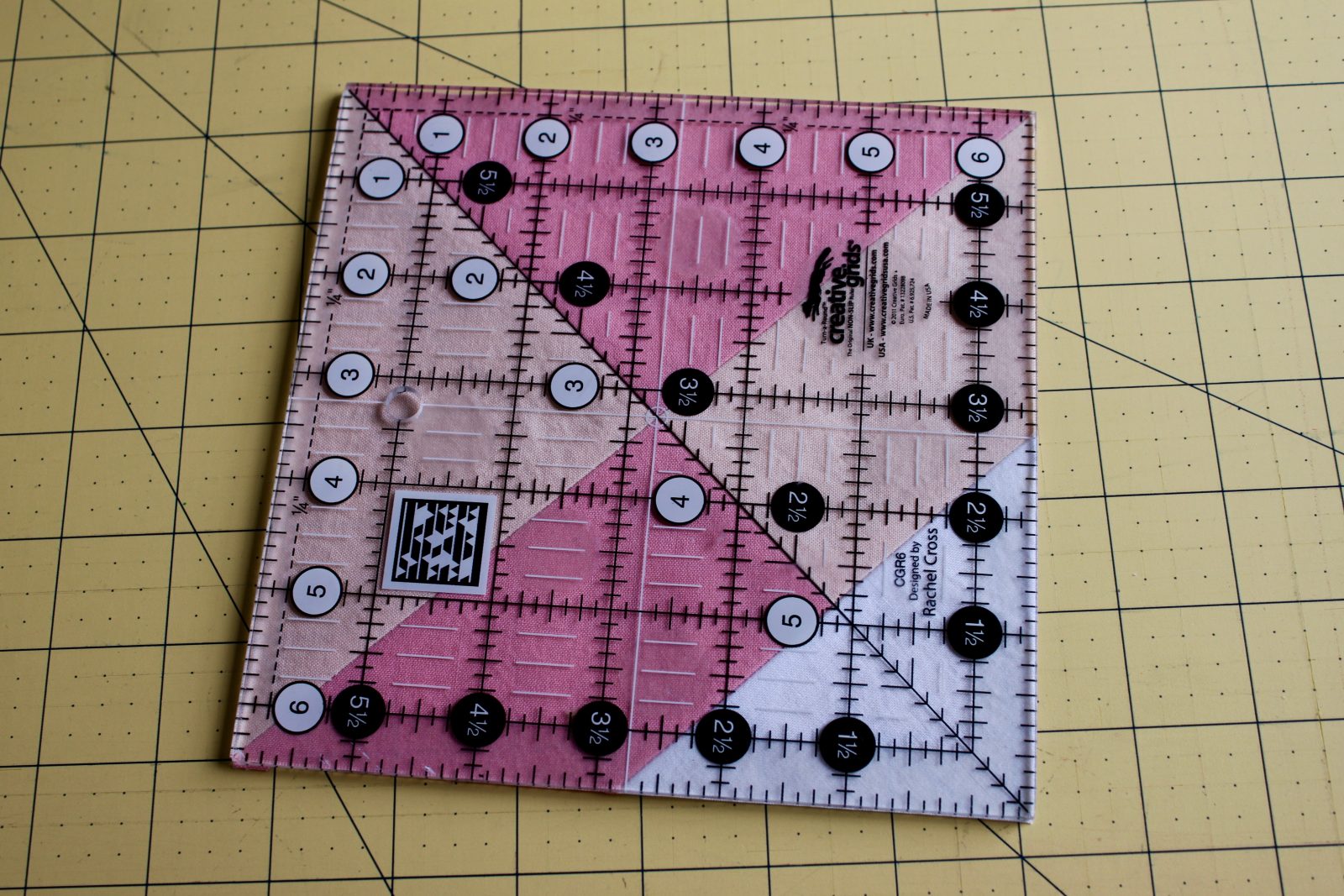

Press seams open and square up the block to 6 1/2″.

Step 5: Assemble the block.

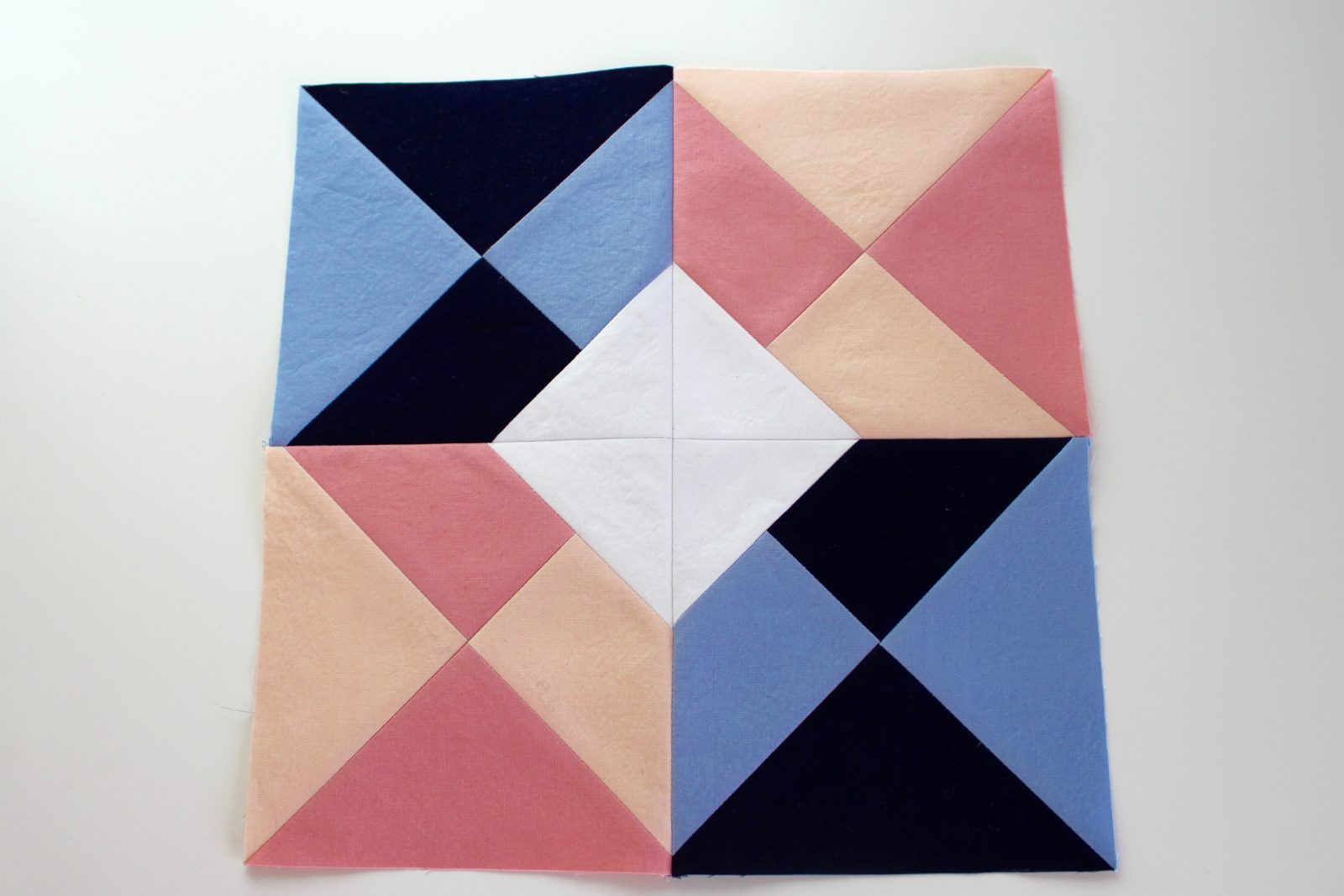

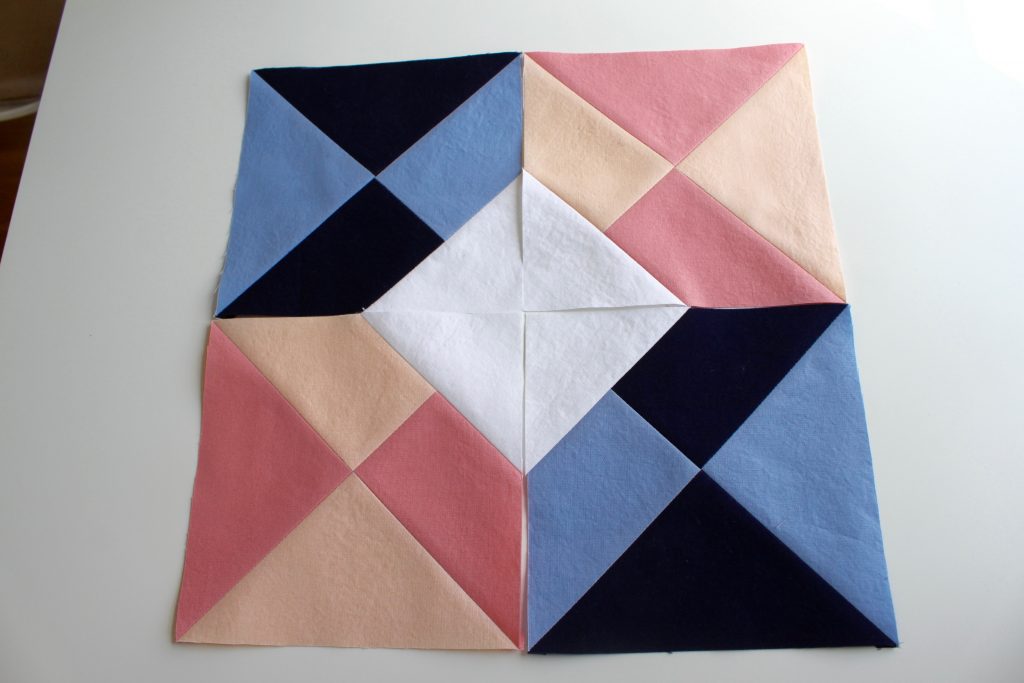

Hourglass Sunset by Leland Ave Studios/Kim SoperUsing your quarter inch seam, attach all four hourglass blocks so that the White triangles meet in the center to form a diamond, and the matching hourglass blocks are diagonal from one another.

And you are done! So easy! And if you’d like to see the layout as a whole quilt, I’ve got you covered:

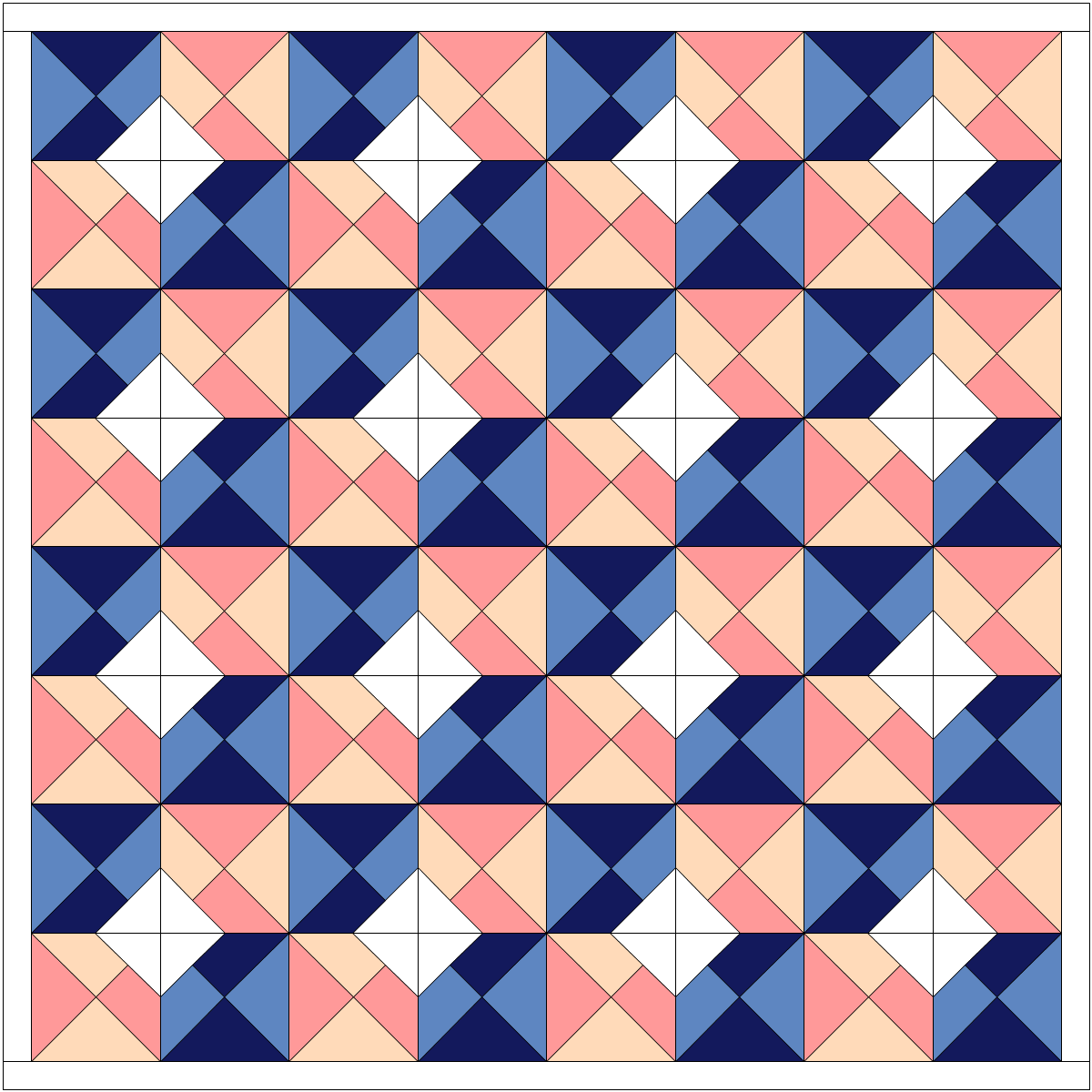

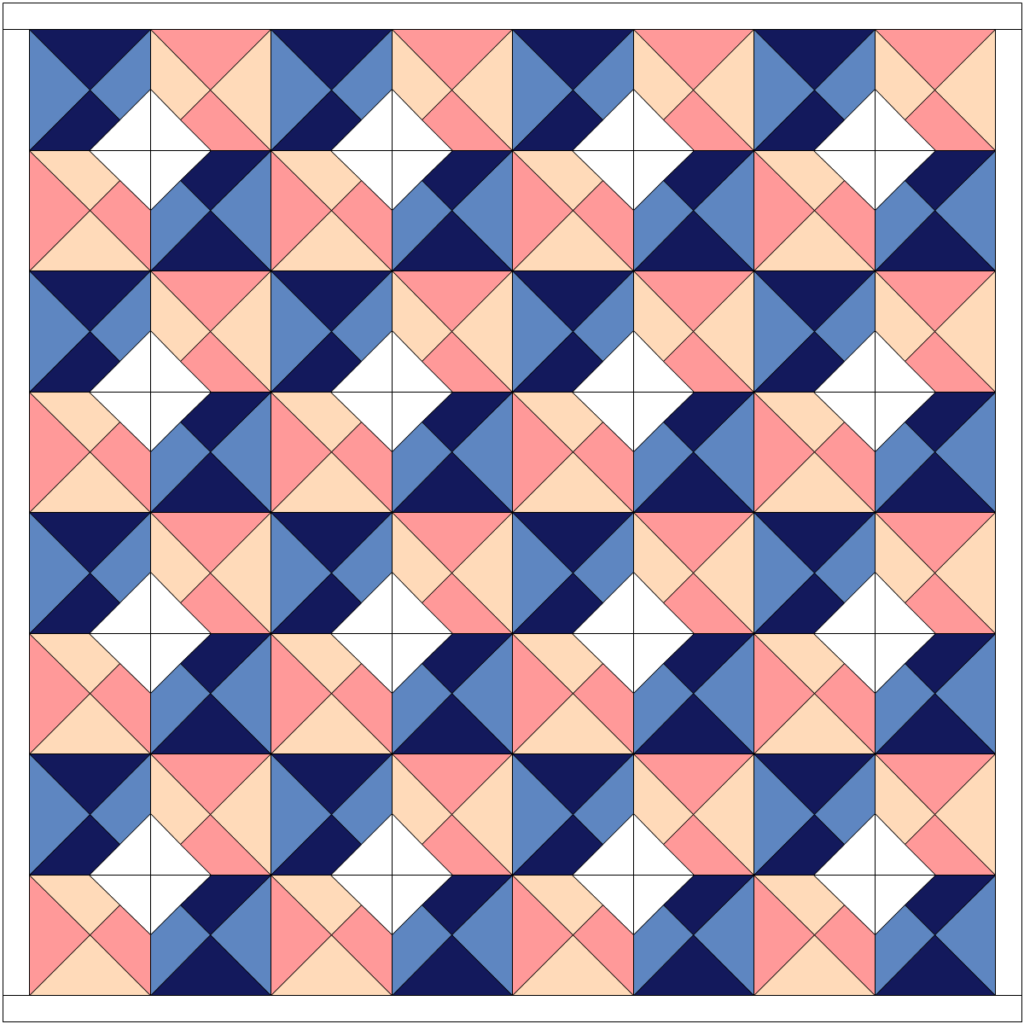

Hourglass Sunset Quilt EQ7

I hope you’ve enjoyed this tutorial, and I appreciate you stopping by! And now for a giveaway!
